For Cutting Non-Ferrous Castings
Metal Cutter
Details

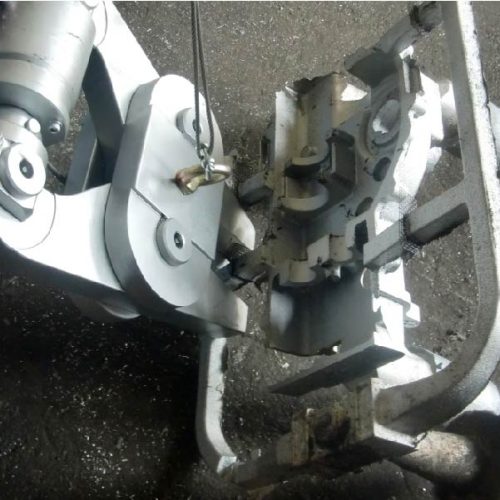

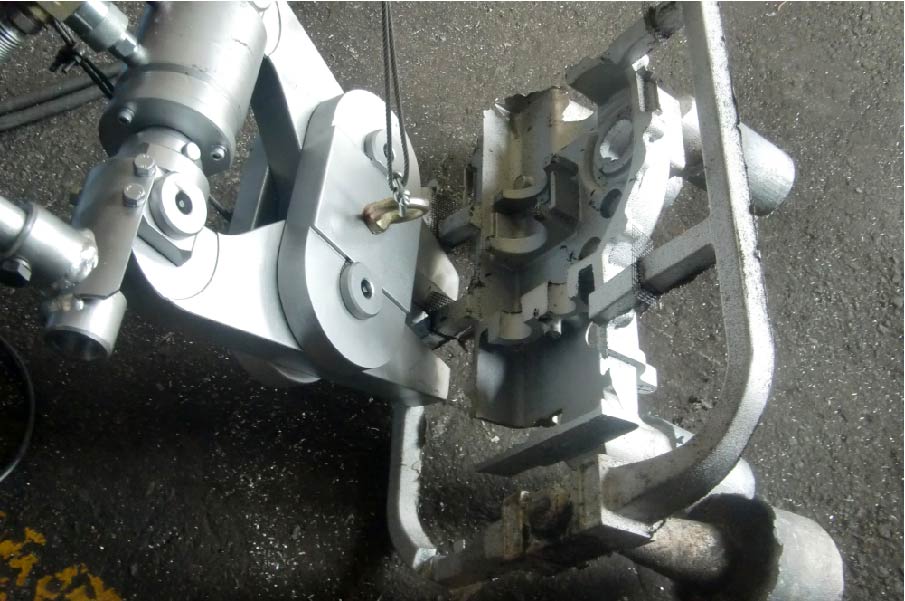

The Metal Cutter Series are specially designed to cut risers and feeders of non-ferrous materials such as aluminium, bronze and copper.
Both Models use specially developed and hardened blades to cut through the material without bending or damaging them.
Operation is fast, easy and with the simple click of a button. All models are manually operated machines, but can be adapted for robotic online systems.
Specifications
Model | Length | Weight | Cylinder Output | Breakable Thickness |
AUC-20 | 571mm | 8kg | 63kN | 18mm x 18mm |
SCH-1S | 365mm | 48kg | 218kN | 35mm X 35mm |
SCH-1 | 492mm | 43kg | 218kN | 45mm x 45mm |
